Vulcan X-Pro 1

Vulcan X-Pro 1

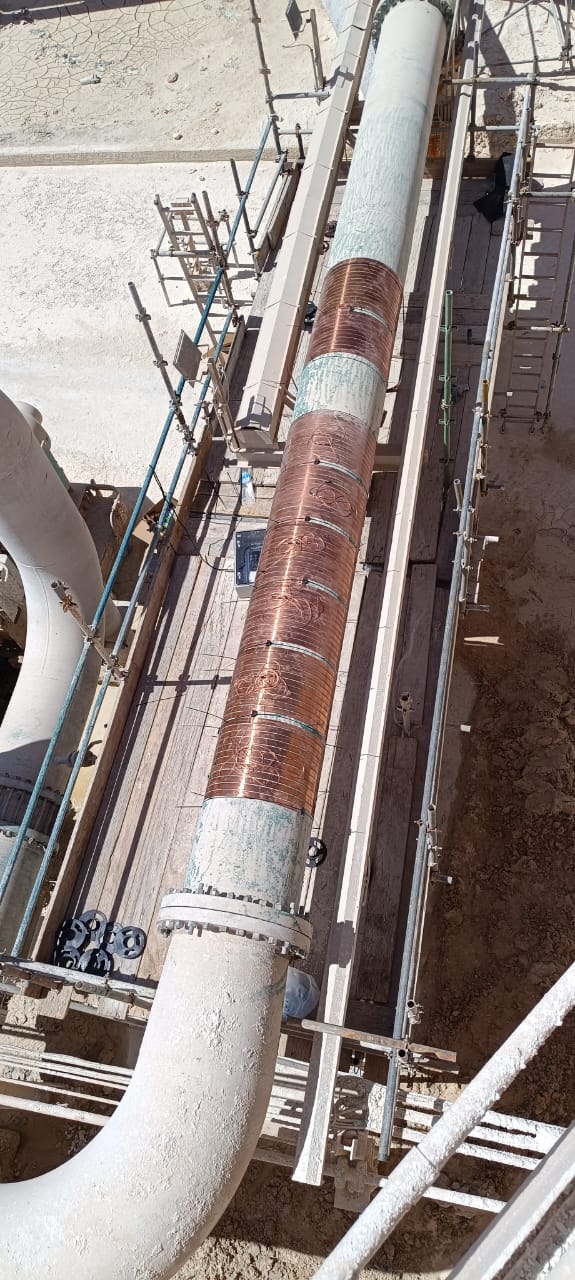

The Anti-Scale System Vulcan X-Pro 1 treats pipe diameters up to 30″ and have been designed to perfectly meet the requirements of large industries. This programmable unit allows an individual adjustment according to the material and diameter of the pipes. Appliances and equipment which come in contact with hard water will have a longer life expectancy, when Vulcan is installed. Less time and effort is needed for cleaning, repairs and maintenance, etc.
Installation – without cutting the pipe.

» Vulcan benefits for industrial applications

» Save money with Vulcan


Vulcan Anti-Scale System

The electronic eco-friendly solution

Vulcan is an eco-friendly water treatment system that protects your piping system and appliances against scale deposits and rust. The Vulcan-Impulse-Technology is based on the principle of physical water treatment. Special electronic impulses change the crystallization process of the liquid calcium. This way the hard scale loses its adhesive power. The technology works exclusively with capacitive electric impulses:


eco-friendly VulcanNO SALT • NO CHEMICALS


» References / Test Reports / Studies


Weight 40 kg
Pipe diameter 20" - 30” (500 - 750 mm)
Voltage 36 V
Wattage 3.75 Watt
Impulse bands 12 x 25 m (12 x 82')
Band width 40 mm (1.6")
Dimensions 340/240/50 mm (13.4/9.4/2.0")
Frequency range 3 - 32 kHz
Required space ~ 5600 mm (~18′ 5″)
Programs 10
