The Anti-Scale System Vulcan S350 treats pipe diameters up to 14″ and have been designed to perfectly meet the requirements of industries. This programmable unit allows an individual adjustment according to the material and diameter of the pipes. Appliances and equipment which come in contact with hard water will have a longer life expectancy, when Vulcan is installed. Less time and effort is needed for cleaning, repairs and maintenance, etc.

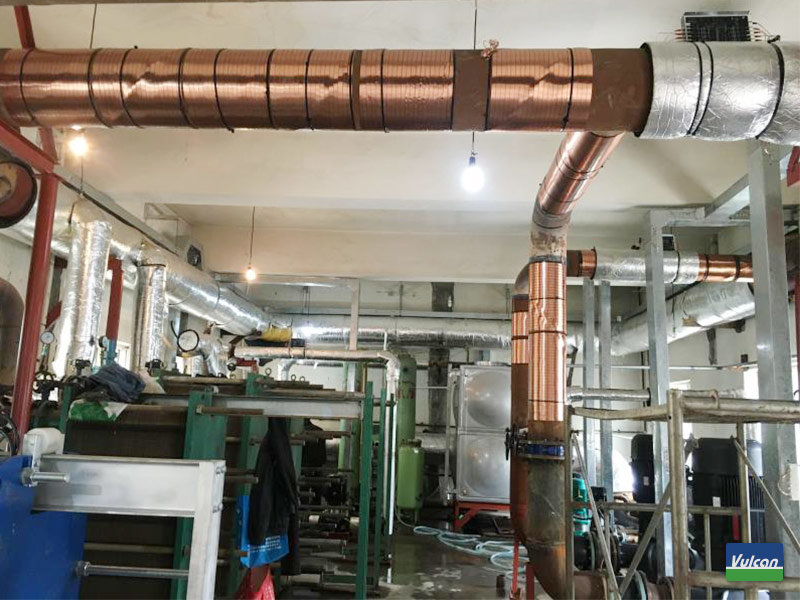

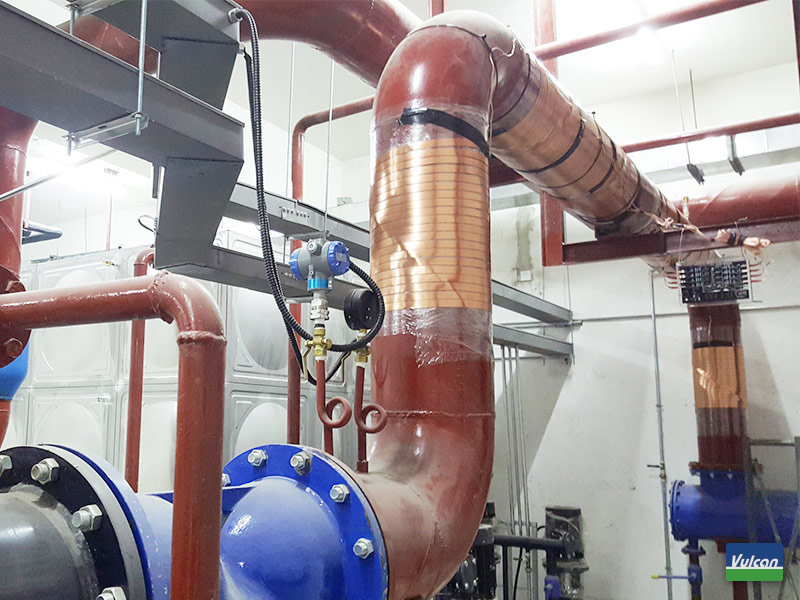

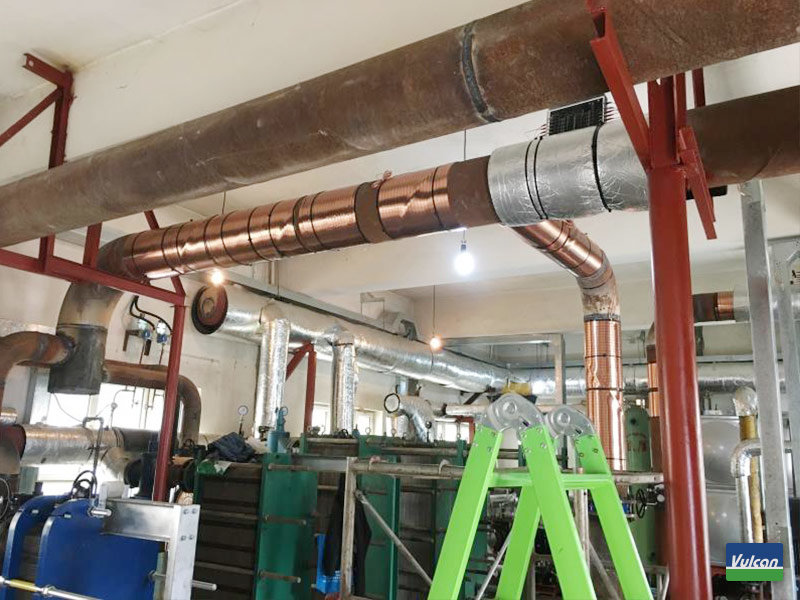

Installation – without cutting the pipe.
Vulcan Anti-Scale System
The electronic eco-friendly solution
Vulcan is an eco-friendly water treatment system that protects your piping system and appliances against scale deposits and rust. The Vulcan-Impulse-Technology is based on the principle of physical water treatment. Special electronic impulses change the crystallization process of the liquid calcium. This way the hard scale loses its adhesive power. The technology works exclusively with capacitive electric impulses:
|Pipe diameter||6" - 14” (150 - 350 mm)|
|Max. capacity||500 m³/h (2200 gpm)|
|Impulse bands||8 x 20 m (8 x 65' 7″)|
|Band width||20 mm (0.8")|
|Dimensions||280/200/50 mm (11.0/7.9/2.0")|
|Frequency range||3 - 32 kHz|
|Required space||~ 3400 mm (~11' 2″)|
